JWB series stepless speed variator

JWB series stepless speed variator

JWB series stepless speed variator
JWB-X series stepless speed variator is a new generation of high-quality series stepless speed variator which integrating low temperature rise, super silence, leak-tightness, beautiful appearance, novel structure. Its performance indicators have reached or surpassed the standard JB/T6950-93 planet cone disk stepless speed variator, and the main performance indicators have approached or surpassed the level of similar foreign products. Compared with tradition products, it has four characteristics as follows:
1. Low temperature rise: the product is processed by superfinishing means to make sure low slip and can reach the lowest temperature rise in high torque drive.
2. Super silence: the products adopt high-precision planetary bevel-type friction pair structure and precision processed gear pair structure to get the lowest noise index.
3. Leak-tightness: the products adopt no leaks and whole sealing design, the main sealing elements use high quality imported sealing elements.
4. Beautiful appearance: adopting high strength and high grade appearance coating technology to make the appearance more unique, based on above characteristics, JWB-X series stepless speed variator is widely applied in the working occasions of continuous operation, loading speed, and circumstances where multi variable technical parameters and so on. It is the best choice for use in automatic production lines, industrial power equipments and variable speed drives of ceramics, drinks, foodstuff, electronics, leather tanning, pharmaceutical, chemical, textile and other industries.

聯系我們
010 87973866
  • 參數表
  • 組合系統
  • 樣本
  • 三維圖
  • Speed range of speed variator: 5 times (Such as: speed regulation between 40-200 RPM)

    Structural style:

             Horizontal foot mounted

             Vertical flange mounted

             Double Shaft mounted

    Input power: 0.18~7.5KW

    Output speed: 190~950r/min

    Allowable torque: ≤118N•M

    Specification parameter table of speed variator: range of speed regulation: 190r-950r/min

    Frame No.
    01
    02
    03
    04
    05
    06
    Input power of motor 0.18kw
    0.25/0.37kw
    0.55/0.75kw
    1.1/1.5kw
    2.2/3/4kw
    5.5/7.5kw

    Speed variator with one stage gear: speed range

    With one stage gears




    range of speed regulation
    100-500r/min
    80--400r/min
    60--300r/min
    40--200r/min

    with two stage gears











    range of speed regulation
    3-150
    28-140
    25-125
    20-100
    18-90
    15-75
    13-65
    12-60
    9-45
    8-40
    6.5-32.5



    Speed variator with three stage gears has two speed range respectively are 4.7--23.5r/min, 2-10r/min.

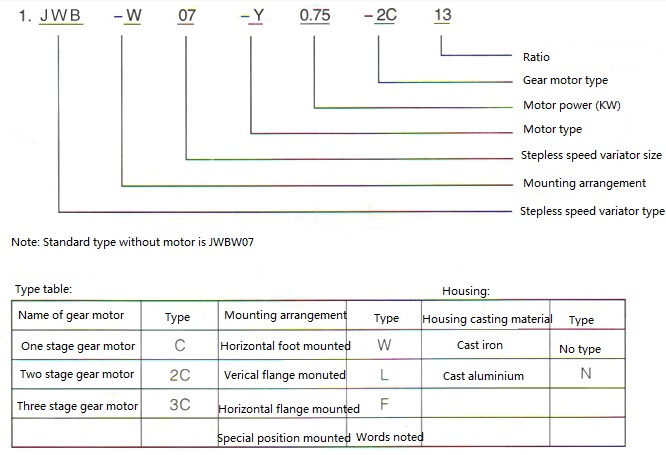

  • Only can order according to the standardization model.

  • JWB series stepless speed variator:

    It can combine with RV series and SFKR series gear motors which can meet the customer’s need for speed range.
